The Original BilletFlow Snub Idler Pulley and Bracket for the 2003-2004 Ford SVT Cobra.
Why pay more for less
?

Our Snub Idler Kits will give you extreme Belt Wrap and will help to Eliminate any or ALL Supercharger Belt Slippage,  Our setup will work on supercharger pulleys ranging form Stock (3.100") to 2.76".

Single piece, rigid construction providing Maximum dependability for High Horsepower Applications.
No extra parts to fail !!

Our pulleys are made from 6061-T6 Billet Aluminum and CNC machined to Perfection!  We use High Speed Bearing for long service life and quiet operation.  We use five retention screws to not only keep the Bearing seated in the pocket but also keep the bearings outer race from spinning in the bore from thermal expansion and wallowing out causing pulley failure.

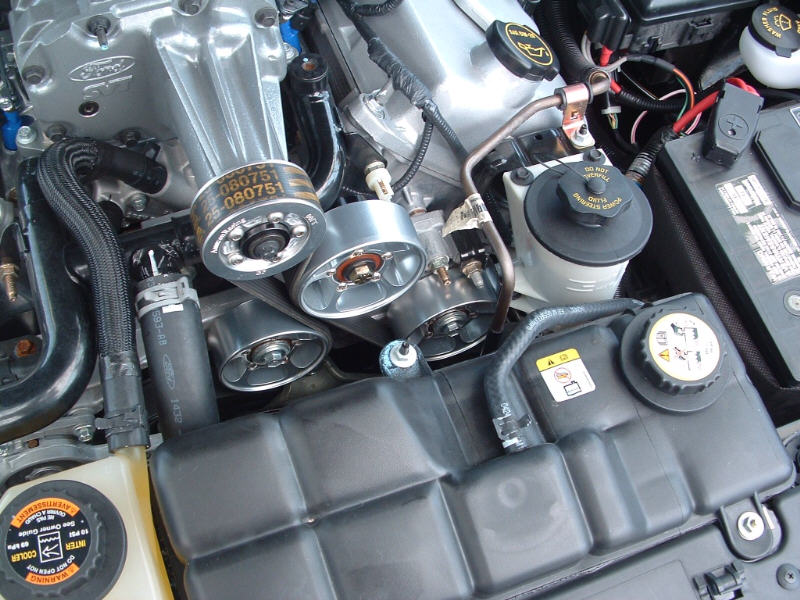

The Stealth Kit comes with:
    1~ Bracket
    1~ Stock Ford Pulley
   All required bolts for installation are provided ( Grade 8 )
    (we do not offer a belt at this time)

The Single Pulley Idler Kits comes with:
    1~ Bracket
    1~ 100mm Billet Pulley

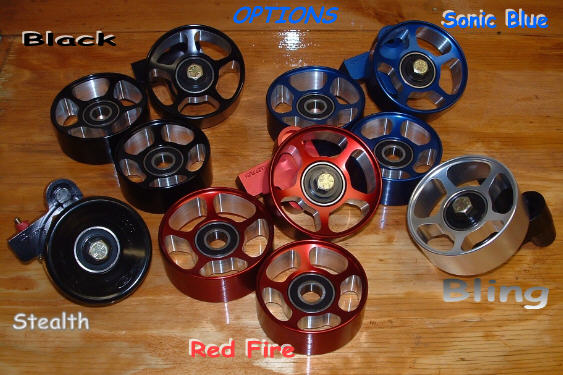

    Your choice of color (Red Fire, Sonic Blue, Black, Clear)
   All required bolts for installation are provided ( Grade 8 )
    (we do not offer a belt at this time)

The 4 Pulley Idler Kits comes with:
    1~ Bracket

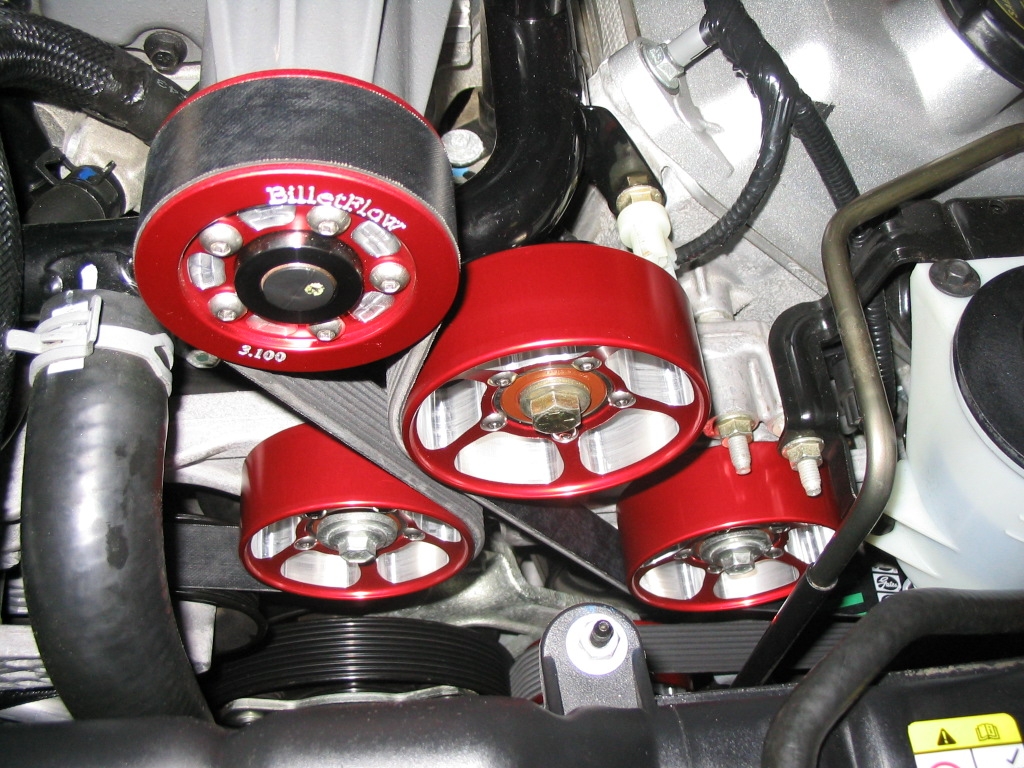

    1~ 92mm Billet Pulley        (Look at above pic to see where they go)
    3~ 100mm Billet Pulleys
    Your choice of color (Red Fire, Sonic Blue, Black, Clear)
   All required bolts for installation are provided ( Grade 8 )
    (we do not offer a belt at this time)

We recommend Goodyear "Gatorback" and Gates "Green Stripe" belts.


            Idler Bracket:
                        Material: 6061-T6 Billet Aluminum
                        Process: CNC Machined
                        Coating: Anodized Black

            Idler Pulley:
                        Stock Ford Pulley OR
              Billet  Aluminum Pulleys Anodized Silver, RedFire, SonicBlue or Hard Black
              High Speed, Contact Seal Ball Bearings (better then OEM)



*NEW LOWER PRICE!* all prices include shipping except where noted

                 MSRP:
                        Single Pulley Kit (1 Color Pulley and Bracket)                                                $124.95
                        Single Pulley Kit (1 Black Hard anodized Pulley and Bracket)                     $134.95

                        4 Pulley Kit (4 Color Pulleys and Bracket)                                                       $264.95
                        4 Pulley Kit (4 Black Hard anodized Pulleys and Bracket)                            $294.95

                        Individual Billet Pulleys (red, Blue or Silver)                                                    $  54.95
 shipping not included

 Individual Black Hard anodized Billet Pulleys                                                 $  64.95  shipping not included



New Snub Idler Bracket.........................Old Snub Idler Bracket



NOTE: The old bracket requires 1/2" smaller belt length
(Subtract 1/2" to all belt lengths below)

Belt Selection Guide
Note: we do not sell belts at this time

(a good place to order belt online is www.rockauto.com )

Use the following 5% discount code at RockAuto: 471930351781 This discount code expires on October 10, 2006


No Idlers

Pulley Size.....Belt Size.......Gates Part No......Gatorback Part No.
3.65 (stock).....75.1" .............K080751................4080750
3.40................75".................K080750................4080750
3.10................74.5...............K080745................4080745

With Single Snub Idler and Bracket Kit

Pulley Size.....Belt Size.......Gates Part No......Gatorback Part No.
3.65...............75.5"...............K080755................4080755 (can not use New Bracket)
3.40...............75.1"...............K080751................4080750 (can not use New Bracket)
3.10...............74.5"...............K080745................4080745 (must use 92mm Idler Pulley)
2.93...............74.5"..................K080745................4080745 (with 100mm Idler)
2.76...............74.5"..................K080745................4080745 (with 100mm Idler)

With 4 Pulley snub Idler Kit (3-100mm and 1-92mm)

Pulley Size....Belt Size........Gates Part No......Gatorback Part No.
3.65..............77"...................K080772...............4080772 (can not use New Bracket)
3.40..............76.5"................K080765...............4080765 (can not use New Bracket)
3.10..............75.5"................K080755...............4080755 (must use 92mm Idler Pulley)
2.93..............75.5"................K080755...............4080755 (with 100mm Idler)
2.76..............75.1".................K080751...............4080750 (with 100mm Idler) (Stock Belt)

With 4 Pulley snub Idler Kit (3-100mm and 1-92mm) and 2lb Metco Lower kit

Pulley Size....Belt Size........Gates Part No......Gatorback Part No.
3.65..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.40..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.10..............XX.X"................K080XXX...............4080XXX (must use 92mm Idler Pulley)
2.93..............78.0"................K080780...............4080780 (with 100mm Idler)
2.76..............XX.X"................K080XXX...............4080XXX (with 100mm Idler) (Stock Belt)

With 4 Pulley snub Idler Kit (3-100mm and 1-92mm) and 4lb Metco Lower kit

Pulley Size....Belt Size........Gates Part No......Gatorback Part No.
3.65..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.40..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.10..............XX.X"................K080XXX...............4080XXX (must use 92mm Idler Pulley)
2.93..............XX.X"................K080XXX...............4080XXX (with 100mm Idler)
2.76..............XX.X"................K080XXX...............4080XXX (with 100mm Idler) (Stock Belt)

With 4 Pulley snub Idler Kit (3-100mm and 1-92mm) and 6lb Metco Lower kit

Pulley Size....Belt Size........Gates Part No......Gatorback Part No.
3.65..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.40..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.10..............XX.X"................K080XXX...............4080XXX (must use 92mm Idler Pulley)
2.93..............XX.X"................K080XXX...............4080XXX (with 100mm Idler)
2.76..............XX.X"................K080XXX...............4080XXX (with 100mm Idler) (Stock Belt)

With 4 Pulley snub Idler Kit (3-100mm and 1-92mm) and 8lb Metco Lower kit

Pulley Size....Belt Size........Gates Part No......Gatorback Part No.
3.65..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.40..............XX.X"................K080XXX...............4080XXX (can not use New Bracket)
3.10..............XX.X"................K080XXX...............4080XXX (must use 92mm Idler Pulley)
2.93..............XX.X"................K080XXX...............4080XXX (with 100mm Idler)
2.76..............XX.X"................K080XXX...............4080XXX (with 100mm Idler) (Stock Belt)

BTW: Never try to use the pulley puller to remove an interchangeable aluminum pulley ring. Always remove the ring first, then remove the steel hub with the pulley puller with the hub removal plated in place.
